Power over Ethernet (POE): PD up to 13W - IEEE802.3af
|
|
The Ag9900 series Ultra-miniature POE modules are the smallest in the world. With a footprint reduced by an incredible 40% compared to the tiny Ag9800 they provide full POE PD module functionality in the smallest of footprints while maintaining Silvertels cost competitive edge. The addition of just two diode bridges and one electrolytic capacitor to this miniscule module is all that is needed to implement POE functionality on any product. Ag9900 is fully compliant to the IEEE 802.3af PoE standard, providing POE signature, classification, isolation and DC/DC conversion to 12V, (5V and 3.3V versions to follow) while taking up minimal PCB space. The module is ideal for any space limited PoE applications such as IP cameras, biometric readers, RFID, wireless access points, HDBaseT extenders, VOIP phones, networked audio etc.
|
|

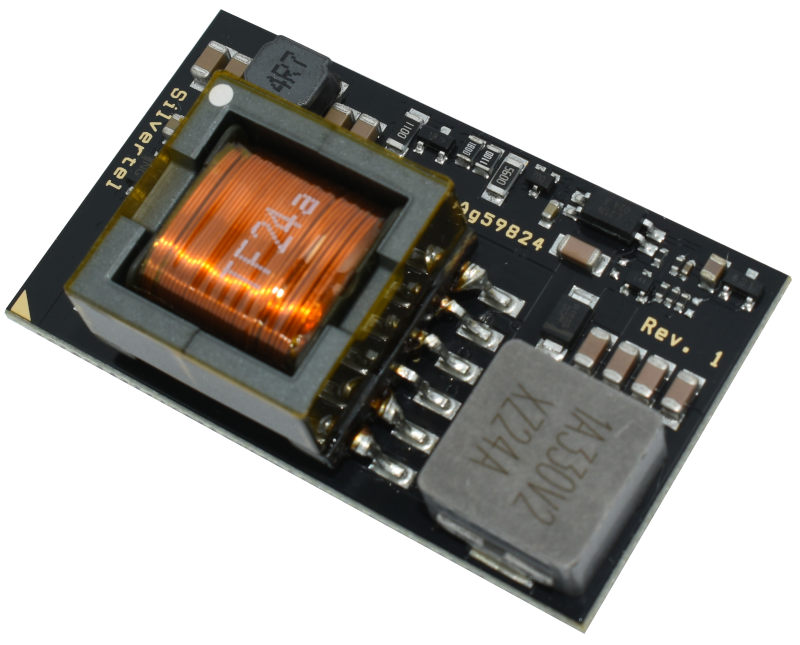

The Ag9800 series POE modules are miniature low profile PD modules. Designed so the addition of just 2 diode bridges and an electrolytic capacitor to this tiny module will add PoE functionality to your product. Ag9800 is fully compliant to the IEEE 802.3af PoE standard, providing POE signature, classification, isolation and DC/DC conversion to 12V, 5V or 3.3V while taking up minimal PCB space. The module is ideal for space constrained PoE applications such as IP cameras, biometric readers, RFID, wireless access points, HDBaseT extenders, VOIP phones, networked audio etc.
|
Ag9700 is a complete cost reduced, competitive and reliable POE module for high volume applications. The modules extract power from Cat5 Ethernet cables and conform to the IEEE 802.3af standard. Ag9700 requires minimal external components and provides isolation between input and output. Available in SIL and SMT* packages, with 24, 12, 5 or 3 Volt outputs to suit a range of applications. An Industrial temperature SIL option, for operation between -40C to +85C is also available.
* NOTE: Ag9700M Series Not Recommended for New Designs
Use Ag9900M or Ag9800M for New SMT Designs
|
|
The Ag9200 series of POE modules are based on a high efficiency design. The modules extract power from Cat5 Ethernet cables and conform to the IEEE 802.3af Power over Ethernet PoE standard. This is a total solution, including an isolation barrier between input and output. Ag9200 is designed to provide the maximum available power e.g. 10W @ 3V or 13W @ 5V.
|
Ag9312 and Ag9330 modules are ideal for applications such as IP cameras where an AC and DC supply is used as backup or as an installation option. The modules extract power from Cat5 Ethernet cables and conform to the IEEE 802.3af (Ag9312) or at/POE+ (Ag9330) standards. In addition to POE, Ag9300 modules also provide auxiliary inputs for DC voltages from 12V to 48V or a comparable AC voltage (after external rectification).
|
|
Ag9512 is a self-contained module for providing power to IP security cameras. Its' format and footprint is standard for IP cameras (including box and dome). Ag9512 extracts power from a twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af PoE standard.
|
Not Recommended for new Designs.
Ag9800 is the new low cost alternative
Ag8100 SMT PoE modules are used in a range of applications, such as IP phones, gateways and security cameras. These non-isolated modules require just four low cost external components. Three different voltage variants allow the output to be set to from 2.5V to 14V.
|
|
Not recommended for new designs.
Ag9700-FL is the recommended alternative
Ag9000 series extract POE power from conventional twisted pair Cat5 Ethernet cables and conform to the IEEE 802.3af Power over Ethernet standard. Ag9000 is a complete solution providing Class programming, over-temperature protection and isolation between input and output. Ag9000 is still available in different output voltage options to suit a range of applications.
|
Not recommended for new designs.
Ag9700 is the low cost replacement
Ag9400 series extract POE power from twisted pair Cat5 Ethernet cables and conform to the IEEE 802.3af PoE standard. Ag9400 is used in high volume IP Cameras and VoIP phone applications. Ease of use, minimal external components, and an isolation barrier between input and output are key features.
|
|
Ag9700 is the recommended replacement
Ag9600 series PoE modules extract power from conventional Cat5 Ethernet cables and conform to the IEEE 802.3af PoE standard. Ag9600 was aimed at high volume IP Cameras or VoIP phone applications. Ease of use, minimal external components, and an isolation barrier between input and output are key features. Ag9600 is still available in different output voltage options to suit your application.
|
Not recommended for new designs
Ag9700 is the replacement
Silvertel's original Ag8000 series of PoE modules extract power from conventional Cat5 cabled. Ag8000 series are non-isolated. An isolation barrier between the user and module had to be provided by an external non conductive enclosure. Ag8000 is available in different voltage options to suit a range of applications.
|
|
The PA1212 POE splitter is designed to supply power to a non-POE Ethernet device, such as an IP camera, WiFi Access Point, or VoIP phone. It removes the need for access to mains and a separate plug-top power supply. PA1212 connects to the PoE network via a standard Cat5 cable and RJ45 connection, separating power from the data. Power and data are presented separately on an RJ45 and a DC connector.
|
|
POE+ : PD up to 30W - IEEE 802.3at
|
|
Ag5200 is a low cost PoE+ module that can deliver up to 30 Watts of peak output power. It has a small DIL package size that is ideal for applications such as IP Telephones, WiMAX access points, PTZ cameras and remote computer terminals. Ag5200 complies with both the IEEE802.3af and 802.3at specifications including safety and isolation requirements.
|
Ag5300 is the smallest PoE+ module in the world. Capable of delivering up to 30 Watts peak output power in an exceptionally small footprint SIL package it is ideal for applications such as IP Video Telephones, WiMAX access points, PTZ cameras and remote computer terminals. Ag5300 complies with both the IEEE802.3af and 802.3at specifications including safety and isolation requirements.
|
|
The Ag5100 is a PoE+ module that can deliver up to 30 Watts of output power. This is ideal for applications such as IP Telephones, WiMAX access points, PTZ cameras and remote computer terminals. The input Signature complies with both the IEEE802.3af and IEEE802.3at specifications and it is designed to meet the safety isolation requirements of IEEE802.3at
|
Ag9312 and Ag9330 modules are ideal for applications such as IP cameras where standard AC and DC supplies are used as a backup or as an installation option. The modules extract power from Cat5 Ethernet cables, conforming to the IEEE 802.3af (Ag9312) or at/POE+ (Ag9330) PoE standards. In addition to POE inputs Ag9300 modules also provide auxiliary inputs to accept a dc voltage from 12V to 48V or a comparable ac voltage (after external rectification).
|
POE Ultra up to 60W
|
|
Ag5500 is a POE Ultra module that can deliver up to 60 Watts of output power. It is ideal for applications such as WiMAX access points, door access systems, PTZ cameras and remote computer terminals. The input signature complies with both the IEEE802.3af and IEEE802.3at specifications and it is designed to meet the safety isolation requirements of IEEE802.3at.
|
Ag5510 is a cost & size reduced, small DIL footprint PoE Ultra module, for delivering up to 60W of output power. Ideal for applications such as microwave links, WiMAX access points, door access systems, PTZ cameras and remote computer terminals. The input signature complies with the 802.3at specifications and it is designed to meet the safety & isolation requirements of 802.3at.
|
Power over HDBaseT PoH : PD 100W
|
|
|
The Ag5600 is a half-brick DIL footprint PoE/PoH module that can deliver up to 88 Watts of output power. It is ideal for single wire HDBaseT LED TVs, Digital displays, WiFi access points, door access systems, PTZ cameras and remote computer terminals. The module complies with the PoH specifications and is backwards compatible with IEEE802.3af and 802.3at including safety isolation.
|
The Ag5610 is an ultra low profile (only 9mm high) PoE/PoH module that can deliver up to 88 Watts of output power. It is ideal for single wire HDBaseT flat panel LED TVs, Digital displays, WiFi access points, door access systems, PTZ cameras and remote computer terminals. The module complies with the PoH specifications and is backwards compatible with IEEE802.3af and 802.3at including safety isolation.
|
PoE Ultimate (200W)
|
|
|
Ag5700 is a Powered Device (PD) module capable of supplying up to 200W over a standard Cat6 Ethernet cable. Designed to work exclusively with the Silvertel Ag6700, it incorporates a wide range of micro-processor controlled monitoring and protection features for safely within the target equipment, typically: TV’s, displays, computer monitors, computers or cameras.
|
|
PSE Modules from 30W to 230W
|
|
|
Ag6100 is a single channel PSE module designed to inject power into conventional twisted pair Category 5 Ethernet cables. The Ag6100 is compatible with IEEE 802.3af and 802.3at Power-over-Ethernet (PoE) devices and comes in industrial temperature specification as standard. For Ag6100 applications, take a look at the complementary Ag7100 DC-DC converter.
|
Ag6110 is a single channel 74W PSE module designed to inject power into conventional twisted pair Category 5 Ethernet cables. The Ag6110 is compatible with Ultra PoE, IEEE802.3at Type 1(af) & Type 2
|
|
Ag6400 is a 4 channel PSE module designed to inject power into conventional twisted pair Cat5 Ethernet cables. These modules provide exceptional efficiency and are fully compatible with IEEE 802.3af and 802.3at Power-over-Ethernet (PoE) devices.
|
|
|
Ag6600 is a single channel PSE module designed to be compliant with Power over HDBaseT (PoH), IEEE802.3at Type 1(af) and IEEE802.3at Type 2 Power over Ethernet (PoE) applications. It is capable of delivering up to 95W and is aimed at higher power applications. Perfect for supplying power to single wire HDBT TVs or other high power devices such as IP cameras or computers.
|
Ag6700 is a Power Sourcing Module (PSM) capable of delivering up to 230 Watts of output power over standard Cat 5e/6 Ethernet cable. It is designed to work exclusively with the Ag5700 Powered Device (PD) module to provide a complete PoE solution for very high power applications such as TV’s, Displays, computer monitors, computers and laptops. Ag6700 incorporates a wide range of protection features to ensure the safe operation of very high power PoE.
|
Ag6700
